Octoprog Series in Product and solutions

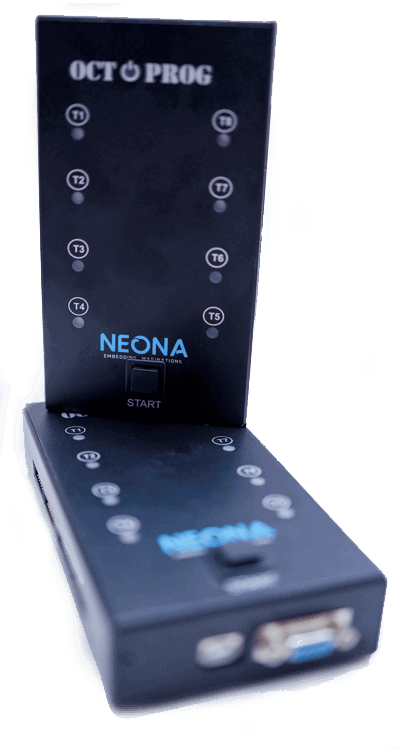

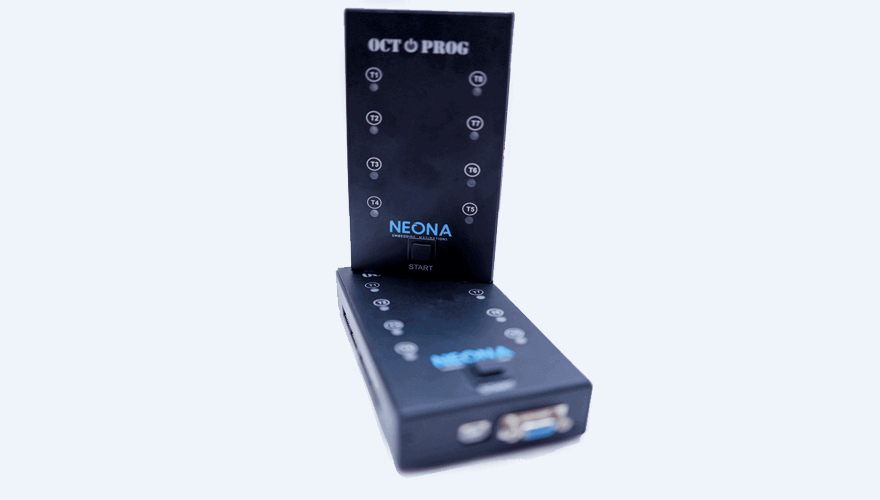

Octoprog is the high-volume model in our line of high-speed, production grade in-circuit programmers for RL78/R8C Family Renesas microcontrollers like RL78/G10, RL78/G12, RL78/G13, RL78/G1A, RL78/G1E, RL78/G1C, RL78/I1A, RL78/F12, RL78/D1A, RL78/L12, and RL78/L13, RL78/G14.Octoprog is ideal for non-stop, mass production operations for program up to eight identical devices at the same time. Using our breakthrough Encrypt Programming technology, Octoprog ensures the highest level of protection for your intellectual property during the manufacturing process.

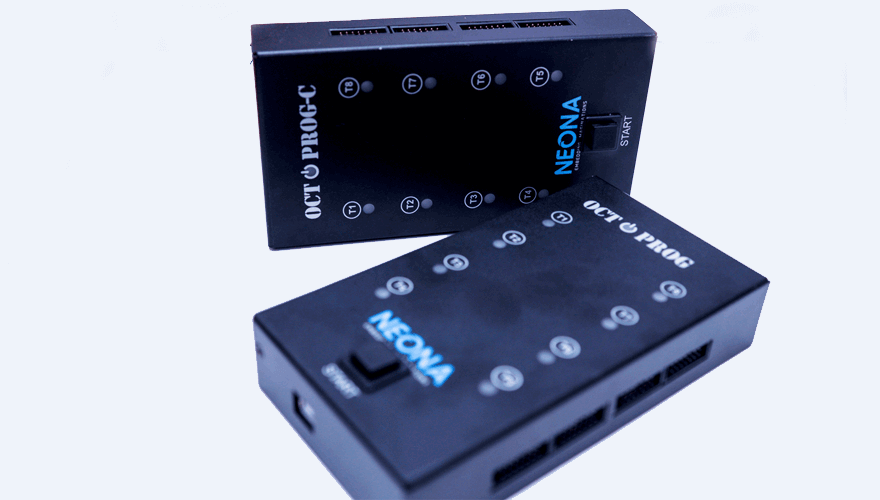

We are delivering 2 type of octoprog, 1.Octoprog Standard 2.Octoprog C

Octoprog Standard used for mass production, while Octoprog C used to automatization of mass production.Octoprog C can be used to program single devices by copying data held in an internal flash memory to the MCUs’ internal memory. It provides an RS232 communication port for interfacing and automating the production programming process.

image gallery

1 / 6
2 / 6
3 / 6
4 / 6
5 / 6
6 / 6

TECHNICAL DETAILS

Octoprog software allows user to encrypt and download the hex-file from PC to Gang Programmer using USB connection. Only if the encryption key in programmer and key used for hex-file encryption matches then code will be successfully programmed. This help the user to share the hex-file (encrypted) with EMS provider as the encrypted hex file can be used only with the respective programmer. In addition to this Octoprog allows the user to set the number of targets to be programmed, once target count is reached programmer will wipe out its internal memory and won’t program any further targets.

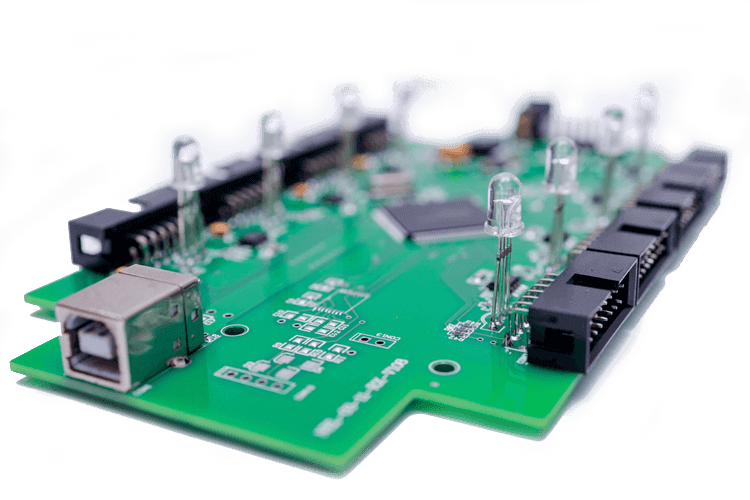

The Octoprog Gang programmer is a RL78/R8C Family device programmer that can program up to eight identical devices at the same time. The Octoprog Gang Programmer connects to a host PC using USB and provides flexible programming options that allow the user to fully customize the process. The Octoprog gang programmer provides an economical and reliable means of programming a wide range of RL78/R8C microcontroller units (MCUs). It is designed with a versatile hardware platform to support programming of different MCUs. The Octoprog gang programmer can be used to program eight devices simultaneously by copying data held in an internal flash memory to the MCUs’ internal memory.

logo
FEATURES
  • Economical means of programming the internal flash memory of a wide range of RL78/R8C family of microcontroller units.
  • Stand-alone programming mode of operation.
  • Single +5V, 2A dc power supply requirement.

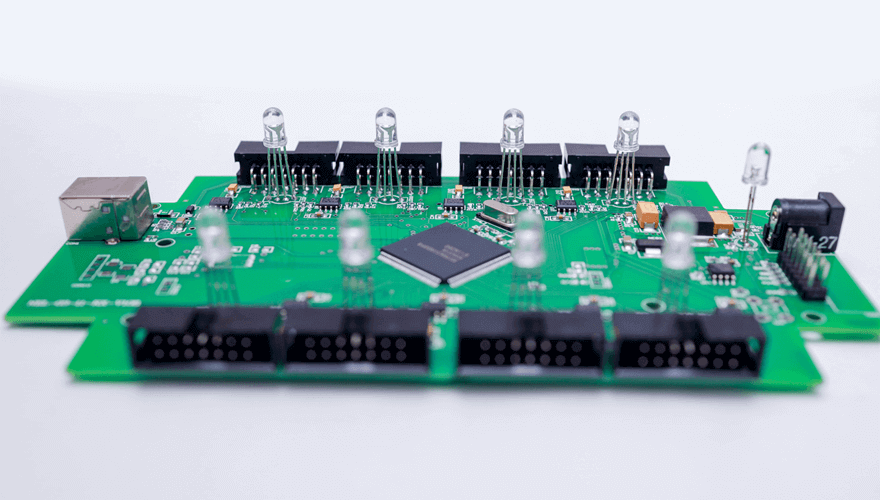

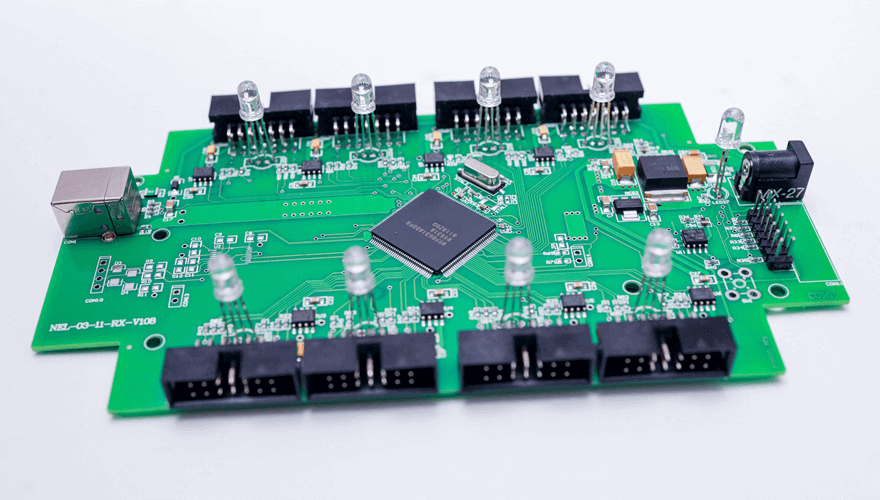

  • Eight pairs of 14 pin FRC male connectors to accommodate for up to eight MCU programmer stations.
  • Multicolor Status LEDs for each programming station.
  • Supports encryption of hex file with a 16-digit password key.
  • Supports Factory reset function
